Rotovac CFX Parts

The CFX is smaller than a standard 12 gallon portable extractor. This is made possible due to the super compact design of the motor housing and small recovery tank with an automatic empty pump out system.

The original cfx can not be upgraded to use CFX ZX vacuum motors. Please call us to ask about our trade in program.

Standard Features

  • Non-Stop High Flow Cleaning
  • Auto pump out at 2.6 GPM
  • Patent pending air/water separation system, no defoamer needed
  • Dual 2 or 3 stage high velocity vac motors 200 CFM
  • Saves Time & Labor
  • Only 39 lbs, fits in any car!
Mytee portable carpet cleaning machine

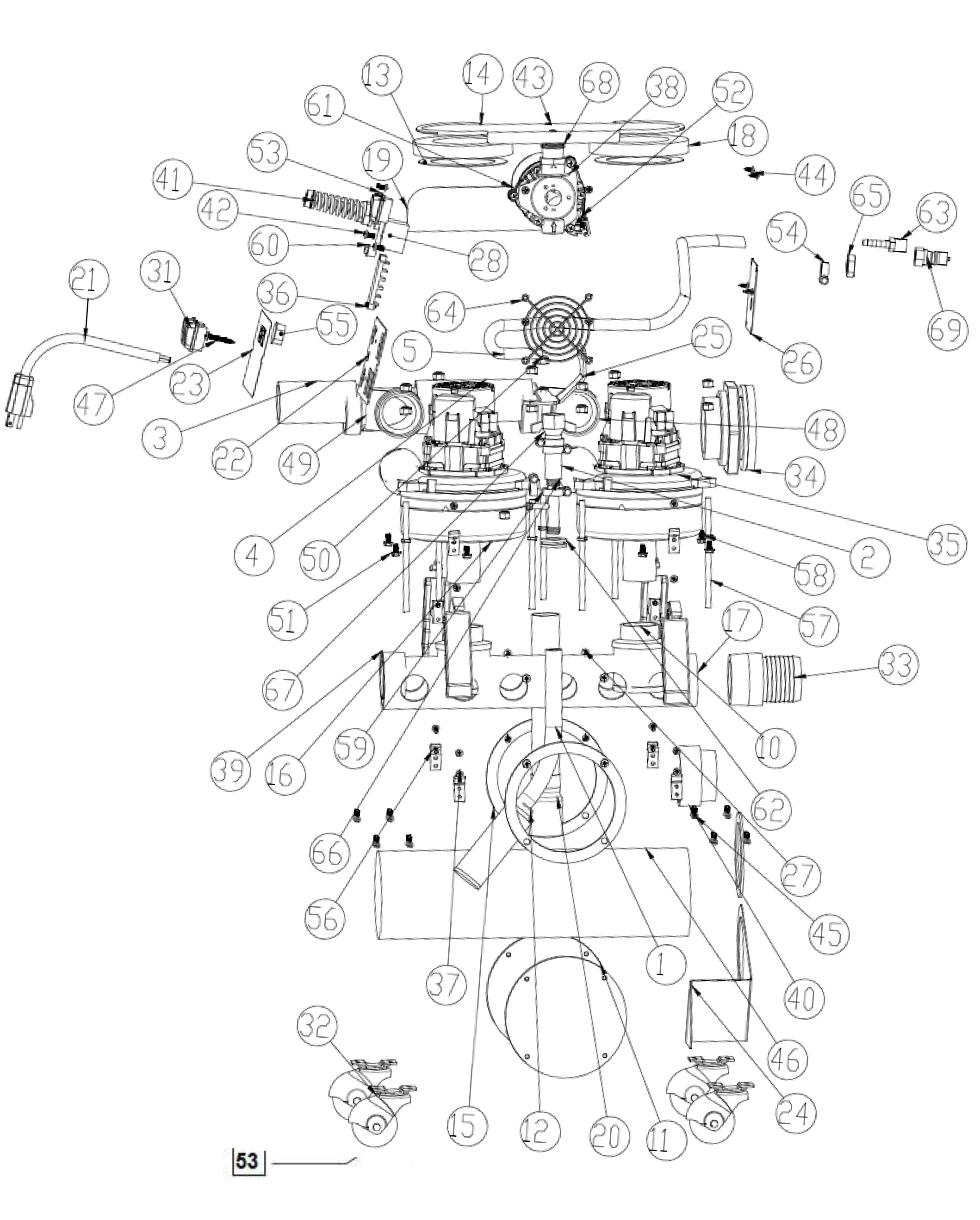

Two and Three Stage Part List

*only for 3 stage
**only for 15 gallon

  PART # Description Price Buy Now
RV 509 thumb

RV-509

2 Stage Vac. Motor 6600-33MP

$110.00

Call 888-768-6822 to purchase.

RV 613 thumb

RV-613*

3 stage vac motor

$169.00

Call 888-768-6822 to purchase.

Faucet adaptor kit thumb

ADAPTKIT

Faucet Adaptor Kit

$69.00

Call 888-768-6822 to purchase.

RV 499 thumb

RV-499

Draw Latch

$15.00

Call 888-768-6822 to purchase.

RV 500 thumb

RV-500

Float Switch

$20.00

Call 888-768-6822 to purchase.

RA 161 thumb

RA-161

10' Clear Discharge Hose Whip

$15.00

Call 888-768-6822 to purchase.

RA 253 thumb

RA-253

CFX Bottom Tank Assembly

$250.00

Call 888-768-6822 to purchase.

RA 345 thumb

RA-345**

CFX Bottom Tank Assembly 15 GallonFits any CFX

$395.00

Call 888-768-6822 to purchase.

RP 258 thumb

RP-258

Vacuum Deck Plate

$165.00

Call 888-768-6822 to purchase.

RP 273 thumb

RP-273

Deck Plate Seal Assembly

$82.50

Call 888-768-6822 to purchase.

RP 276 thumb

RP-276

CFX Upper Housing with Handle

$150.00

Call 888-768-6822 to purchase.

RP 277 thumb

RP-277

Deck Plate Suction Screen

$22.50

Call 888-768-6822 to purchase.

RP 281 thumb

RP-281

Sight Window

$18.00

Call 888-768-6822 to purchase.

RP 287 thumb

RP-287

Motor Vent Cover Plate

$25.50

Call 888-768-6822 to purchase.

RP 288 thumb

RP-288

Window Bezel

$11.25

Call 888-768-6822 to purchase.

RP 289 1 thumb

RP-289-1

Vacuum Intake Gasket - Large

$9.75

Call 888-768-6822 to purchase.

RP 289 2 thumb

RP-289-2

Vacuum Intake Gasket - Small

$9.75

Call 888-768-6822 to purchase.

RP 290 thumb

RP-290

Inlet Diffuser Tube

$45.00

Call 888-768-6822 to purchase.

RP 292 thumb

RP-292*

Pigtail powercord

$5.00

Call 888-768-6822 to purchase.

RP 294 thumb

RP-294

Pump Outlet Gasket

$5.25

Call 888-768-6822 to purchase.

RP 296 thumb

RP-296

Motor Wire Bundle

$37.50

Call 888-768-6822 to purchase.

RP 297 thumb

RP-297

Control Wire Bundle

$27.00

Call 888-768-6822 to purchase.

RP 305 thumb

RP-305

Main Decal

$11.25

Call 888-768-6822 to purchase.

RP 309 thumb

RP-309

Cover Level Switch

$7.50

Call 888-768-6822 to purchase.

RP 338 thumb

RP-338

Power Cord for CFX

$15.00

Call 888-768-6822 to purchase.

RP 352 thumb

RP-352

Control Plate

$30.00

Call 888-768-6822 to purchase.

RP 354 thumb

RP-354

Control Plate Decal

$7.50

Call 888-768-6822 to purchase.

RP 371 thumb

RP-371

Suction Hose Guide

$12.00

Call 888-768-6822 to purchase.

RP 392 thumb

RP-392

Pump Mounting Bracket for Shurflo Pump

$25.00

Call 888-768-6822 to purchase.

RP 395 thumb

RP-395

CFX Priming Plate

$7.00

Call 888-768-6822 to purchase.

RP 438 thumb

RP-438**

Cross Bar

$25.00

Call 888-768-6822 to purchase.

RP 443 thumb

RP-443**

15 Gallon Deck Plate

$150.00

Call 888-768-6822 to purchase.

RV 422 thumb

RV-422

CFX Window Screw

$0.15

Call 888-768-6822 to purchase.

RV 495 thumb

RV-495

Picker Relay

$15.00

Call 888-768-6822 to purchase.

RV 502 thumb

RV-502

Female Crimp Connect

$0.50

Call 888-768-6822 to purchase.

RV 506 thumb

RV-506

Ball Caster Wheel

$9.00

Call 888-768-6822 to purchase.

RV 507 thumb

RV-507

Barbed Pipe Hose Adapter

$7.50

Call 888-768-6822 to purchase.

RV 508 thumb

RV-508

Bulkhead Fitting

$15.00

Call 888-768-6822 to purchase.

RV 520 thumb

RV-520

Plug For 2" Pipe Size

$0.75

Call 888-768-6822 to purchase.

RV 521 thumb

RV-521

2" Male PVC Pipe Adapter

$4.50

Call 888-768-6822 to purchase.

RV 524 thumb

RV-524

Control Mounting Screw

$0.37

Call 888-768-6822 to purchase.

RV 529 thumb

RV-529

Female Plastic Garden Hose Fitting

$5.00

Call 888-768-6822 to purchase.

RV 530 thumb

RV-530

Vent Plate Screw

$0.37

Call 888-768-6822 to purchase.

RV 531 thumb

RV-531

Access Cover Screw

$0.37

Call 888-768-6822 to purchase.

RV 532 thumb

RV-532

Caster Wheel Screw

$0.37

Call 888-768-6822 to purchase.

RV 533 thumb

RV-533

Male Plastic Garden Hose Fitting

$5.00

Call 888-768-6822 to purchase.

RV 546 thumb

RV-546

Filter Bag for CFX (8x17") (price is for a pack of 3)

$27.00

Call 888-768-6822 to purchase.

RV 551 thumb

RV-551

White Crimp Cap

$0.37

Call 888-768-6822 to purchase.

RV 554 thumb

RV-554

Small Female Crimp Connect

$0.37

Call 888-768-6822 to purchase.

RV 560 thumb

RV-560

Exahaust Manifold Screw

$0.37

Call 888-768-6822 to purchase.

RV 561 thumb

RV-561

ABS Elbow

$5.00

Call 888-768-6822 to purchase.

RV 562 thumb

RV-562

ABS Tee

$7.50

Call 888-768-6822 to purchase.

RV 565 thumb

RV-565

Zinc Nylock Nut

$0.37

Call 888-768-6822 to purchase.

RV 567 thumb

RV-567

Deck Plate Screw

$0.25

Call 888-768-6822 to purchase.

RV 578 thumb

RV-578

Relay Screw

$0.25

Call 888-768-6822 to purchase.

RV 585 thumb

RV-585

Black Plugs for Draw Latch Keeper Holes

$0.15

Call 888-768-6822 to purchase.

RV 615 thumb

RV-615

Hole Plug for Control Plate

$1.00

Call 888-768-6822 to purchase.

RV 617 thumb

RV-617

Draw Latch Keeper

$1.00

Call 888-768-6822 to purchase.

RV 628 thumb

RV-628

All Thread

$3.00

Call 888-768-6822 to purchase.

RV 629 thumb

RV-629

Zinc Nut

$0.25

Call 888-768-6822 to purchase.

RV 630 thumb

RV-630**

Crossbar Screw

$0.25

RV 645 thumb

RV-645

Manual Empty Button

$10.00

Call 888-768-6822 to purchase.

RV 660 thumb

RV-660

Grommet for Vac Cover Plate

$1.20

Call 888-768-6822 to purchase.

RV 667 thumb

RV-667

Brass Barbed Fitting

$1.00

Call 888-768-6822 to purchase.

RV 668 thumb

RV-668

Brass Garden Hose Fitting for Pump

$15.00

Call 888-768-6822 to purchase.

RV 671 thumb

RV-671

Thin Nut

$1.00

Call 888-768-6822 to purchase.

RV 683 thumb

RV-683

Nylon Reducing Tee

$2.00

Call 888-768-6822 to purchase.

RV 684 thumb

RV-684

Swivel Barb

$1.50

Call 888-768-6822 to purchase.

RV 784 thumb

RV-874**

Seal for Crossbar Screw

$0.25

Call 888-768-6822 to purchase.

RV 822 thumb

RV-822

Vac Motor Ring

$5.00

Call 888-768-6822 to purchase.

RV 919 thumb

RV-919

SS Latch Screw

$0.25

Call 888-768-6822 to purchase.

W 013 thumb

W-013

Small Lock Washer

$0.15

Call 888-768-6822 to purchase.

94 238 03

94-238-03

Diaphram Kit

$35.00

Call 888-768-6822 to purchase.

S 061 thumb

S-061

Vac Motor Mounting Nut

$0.45

RV 735 thumb v1586468444

RV-735

Dump Valve

$20.00

Call 888-768-6822 to purchase.

RV 1012 thumb 6483f03a 3834 4f07 b8cf d9606a67f794 v1586461638

RV-1012

2" Silicone Hose Section

$7.00

Call 888-768-6822 to purchase.

RV 501 thumb

RV-501

Green CFX Switch

$15.00

Call 888-768-6822 to purchase.

RA 160 thumb

RA-160

50' Clear Discharge Hose

$67.50

Call 888-768-6822 to purchase.

RP 284 thumb

RP-284

Fluid Suction Strainer

$13.50

Call 888-768-6822 to purchase.

RV 456 thumb

RV-456

Yellow Female Crimp

$0.50

Call 888-768-6822 to purchase.

RV 523 thumb

RV-523

Strain Relief

$3.75

Call 888-768-6822 to purchase.

RV 527 thumb

RV-527

Ring Terminal

$0.37

Call 888-768-6822 to purchase.

RV 583 thumb

RV-583

RV-583*

Large White Crimp Cap

$0.37

$0.37

Call 888-768-6822 to purchase.

Call 888-768-6822 to purchase.

RV 584 thumb

RV-584

Small Hose Clamp

$1.50

Call 888-768-6822 to purchase.

RV 643 thumb

RV-643

Hose Clamp

$1.50

Call 888-768-6822 to purchase.

RV 670 thumb

RV-670

Vent Guard

$1.50

Call 888-768-6822 to purchase.

RV 665 v1580081523

RV-665

Blue Female Crimp Connector

$0.37

Call 888-768-6822 to purchase.

Shurflo rotovac cfx replacement pump

RV-658

40 PSI Shurflo Diaphragm Pump

$150.00

Call 888-768-6822 to purchase.

V 055 connector

V-055

Male Quick Connect

$8.00
